What does the construction plan include?

A Construction Plan is a multi-faceted document that provides a detailed roadmap for the construction process. It includes various plans and drawings that collectively outline every aspect of the project. Below are the key components of a Construction Plan

Existing condition or demolition plan

The Existing Condition or Demolition Plan is a critical component of the Construction Plan. It outlines the current state of the site, including existing structures, utilities, and any features that may need to be demolished. This plan is essential for understanding the starting point of the project and identifying potential challenges that may arise during construction.

The Existing Condition Plan typically includes:

Site Survey: A detailed survey of the property, highlighting existing buildings, roads, trees, and other significant features.
Utility Mapping: Identification of existing utility lines, such as water, gas, electricity, and sewer systems, which can impact construction activities.
Demolition Requirements: Specifications regarding which structures will be removed and the methods to be employed during demolition.

By having a clear understanding of the existing conditions, project managers can make informed decisions and develop strategies to mitigate risks associated with unforeseen obstacles.

Approved zoning compliance plan

The Approved Zoning Compliance Plan, also known as the Overall Site Plan, is another vital element of the Construction Plan. This document ensures that the proposed project complies with local zoning regulations and building codes. It illustrates the overall layout of the project, including the positioning of buildings, parking areas, landscaping, and other essential site features.

Key aspects of the Approved Zoning Compliance Plan include:

Zoning Regulations: An overview of the applicable zoning laws, including setbacks, height restrictions, and land use classifications.
Site Layout: A visual representation of how the project will fit within the designated area, including the arrangement of buildings and outdoor spaces.
Access and Circulation: Plans for vehicular and pedestrian access, ensuring safe movement throughout the site.

This plan is crucial for obtaining necessary permits and approvals from local authorities, making it a foundational element of the Construction Plan.

Overall dimensional control plan

The Overall Dimensional Control Plan provides precise measurements and dimensions for all elements of the project. This plan ensures that construction adheres to specified tolerances and aligns with design intentions.

Components of the Overall Dimensional Control Plan include:

Control Points: Establishing reference points on the site to guide construction activities and maintain accuracy.
Dimensioned Drawings: Detailed drawings that indicate the exact dimensions of buildings, parking lots, and other site features.
Verification Procedures: Methods for verifying that construction aligns with the approved plans, including regular inspections and measurements.

Having an Overall Dimensional Control Plan helps prevent costly mistakes and rework, ultimately contributing to the project’s success.

Grading plan

The Grading Plan outlines the proposed alterations to the site’s topography. It specifies how the land will be shaped to facilitate proper drainage, create level surfaces for construction, and support landscaping efforts.

Key components of the Grading Plan include:

Cut and Fill Areas: Designation of areas where soil will be removed (cut) or added (fill) to achieve desired elevations.
Slope Gradients: Specifications for slope angles to ensure stability and prevent erosion.

An effective Grading Plan is essential for achieving a stable and functional site while complying with environmental regulations.

Grading plan details

Grading Plan Details provide additional specifications and notes related to the Grading Plan. These details ensure that contractors understand the requirements for executing grading work accurately.

Important aspects of Grading Plan Details include:

Construction Notes: Specific instructions for contractors regarding grading techniques and materials to be used.
Cross-Sections: Detailed drawings showing cross-sections of slopes and cuts to illustrate how the grading will look in three dimensions.
Quality Control Measures: Guidelines for monitoring grading activities to ensure compliance with the approved plan.

These details help maintain quality standards and reduce the likelihood of errors during construction.

Detention pond section

The Detention Pond Section provides a cross-sectional view of the detention pond, illustrating its design and functionality. This section is crucial for understanding how the pond will operate in relation to the surrounding landscape.

Components of the Detention Pond Section include:

Side Slopes: Specifications for the angle and stability of the pond’s side slopes to prevent erosion.
Sediment Forebays: Design features that capture sediment before it enters the main pond, helping to maintain water quality.
Vegetation: Recommendations for planting native vegetation around the pond to enhance aesthetics and improve water quality.

This section aids in visualizing the pond’s design and ensures that it meets both functional and aesthetic goals.

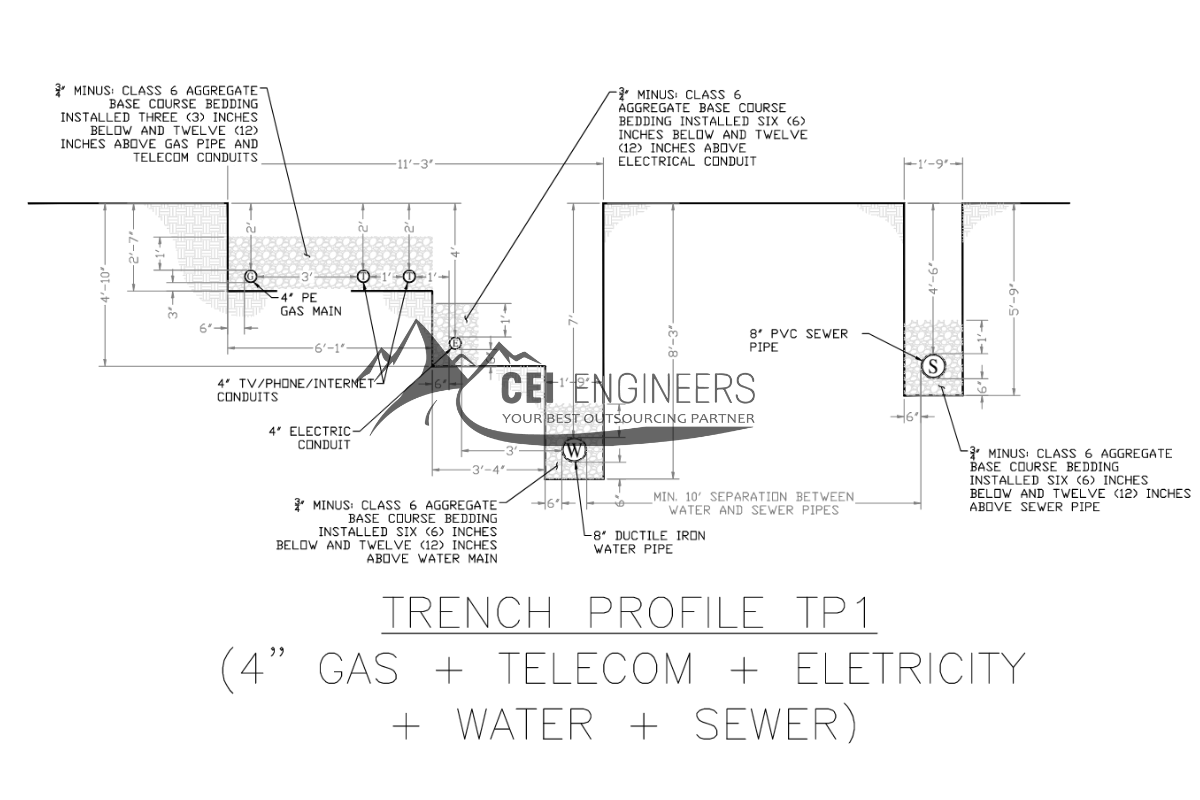

Overall utility plan

The Overall Utility Plan provides a comprehensive overview of all utility systems on the site, including water supply, stormwater management, and sewer systems. This plan is essential for coordinating the installation and maintenance of these critical infrastructure components.

Key components of the Overall Utility Plan include:

Utility Layout: A visual representation of the locations of water lines, storm drains, and sewer lines.
Connection Points: Specifications for how the site will connect to existing utility networks.
Capacity Assessments: Evaluations of whether existing utilities can accommodate the demands of the new development.

This plan is crucial for ensuring that all utility systems function effectively and comply with local regulations.

Overall storm sewer plan

The Overall Storm Sewer Plan focuses specifically on the stormwater management system, detailing how rainwater will be collected and conveyed away from the site.

Key elements include:

Storm Sewer Network: A diagram showing the layout of storm sewer pipes, inlets, and outlets..

This plan is vital for preventing flooding and managing stormwater effectively.

Storm sewer details

Storm Sewer Details provide additional specifications and notes related to the storm sewer system. These details ensure that contractors understand the requirements for installing the storm sewer infrastructure accurately.

Important aspects include:

Material Specifications: Guidelines for the types of materials to be used in constructing storm sewers.
Installation Techniques: Instructions for proper installation methods to ensure long-term functionality.
Inspection Protocols: Procedures for inspecting storm sewer installations to verify compliance with approved plans.

These details help maintain quality standards and reduce the likelihood of errors during construction.

Overall water plan

The Overall Water Plan outlines the design of the water supply system for the project. This plan ensures that adequate water service is provided to meet the needs of the development.

Key components of the Overall Water Plan include:

Water Main Layout: A diagram showing the configuration of water mains, valves, and hydrants.
Connection Points: Specifications for how the site will connect to existing water supply networks.

This plan is essential for ensuring reliable water service for the project.

Overall sewer plan

The Overall Sewer Plan details the design of the sanitary sewer system for the project. This plan ensures that wastewater generated by the development is properly collected and conveyed to treatment facilities.

Key elements include:

Sewer Layout: A diagram showing the arrangement of sewer pipes, manholes, and lift stations.
Connection Points: Specifications for how the site will connect to existing sewer networks.

This plan is crucial for ensuring that wastewater is managed effectively and complies with local regulations.

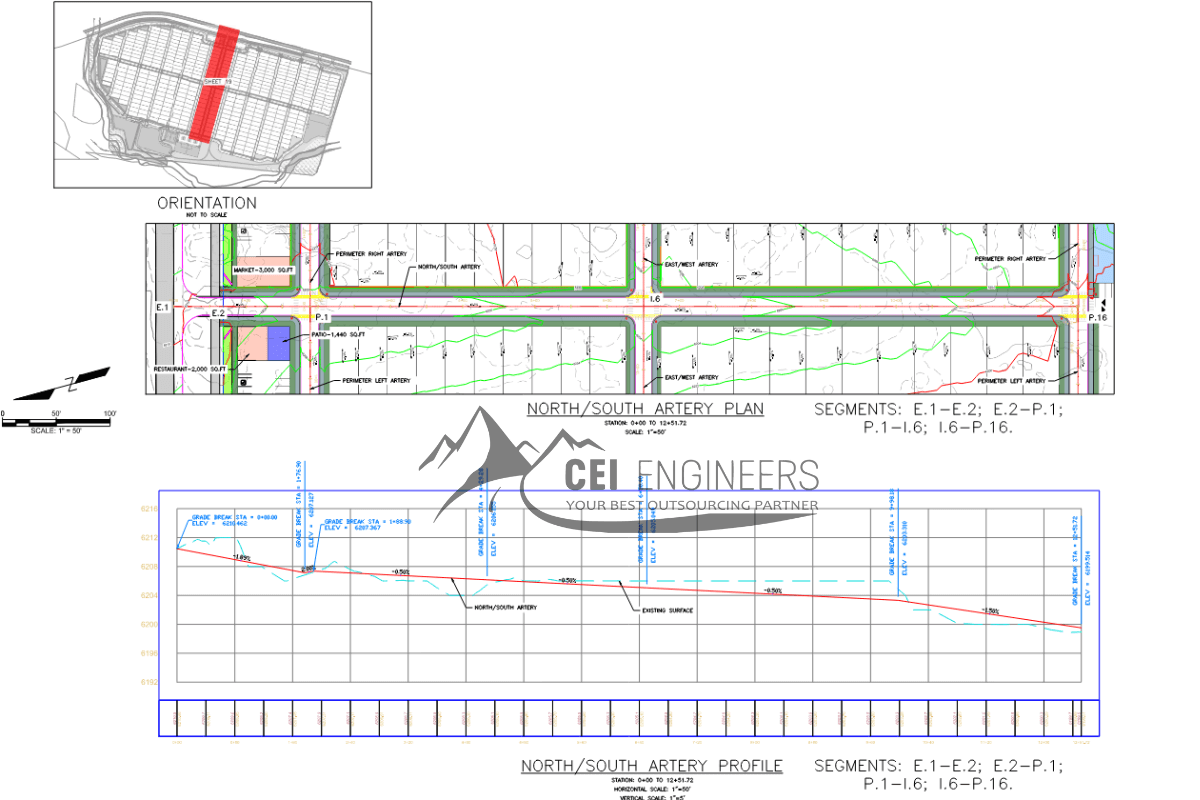

Overall paving plan

The Overall Paving Plan outlines the design of paved surfaces on the site, including roads, parking lots, and walkways. This plan ensures that surfaces are constructed to withstand traffic loads and provide safe access.

Key components of the Overall Paving Plan include:

Pavement Design: Specifications for the type and thickness of pavement materials to be used.
Traffic Flow Patterns: Diagrams illustrating how vehicles and pedestrians will navigate the site.
Drainage Considerations: Provisions for ensuring proper drainage of paved surfaces to prevent flooding.

This plan is essential for providing safe and functional access throughout the site.

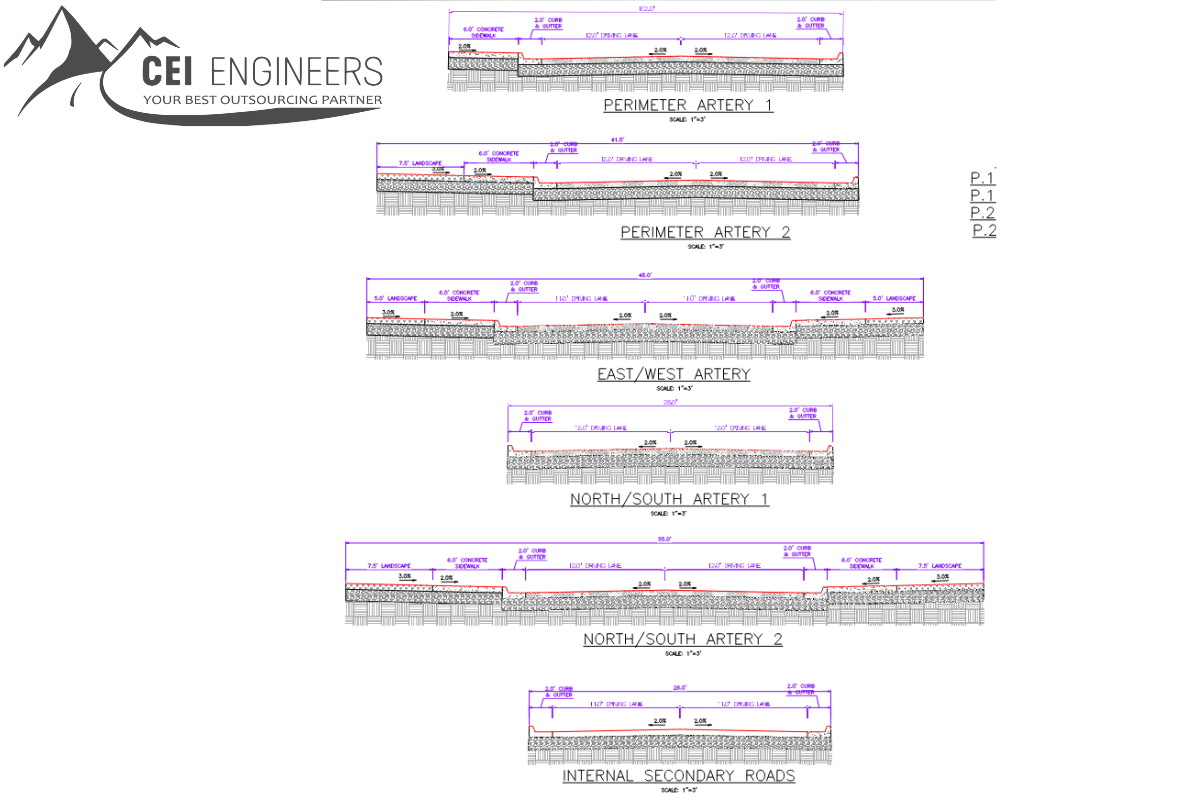

Paving cross-sections

Paving Cross-Sections provide detailed drawings that illustrate the construction layers of paved surfaces. These cross-sections are crucial for understanding how the pavement will be built and maintained.

Important aspects of Paving Cross-Sections include:

Layer Composition: Specifications for the materials and thicknesses of each layer of pavement.
Subgrade Preparation: Guidelines for preparing the underlying soil to support the pavement structure.
Drainage Features: Incorporation of drainage elements to prevent water accumulation on paved surfaces.

These cross-sections help ensure that paving work is executed according to best practices and engineering standards.

Overall signage & striping plan

The Overall Signage & Striping Plan outlines the design and placement of signage and road markings throughout the site. This plan is essential for promoting safety and efficient traffic flow.

Key components of the Overall Signage & Striping Plan include:

Signage Locations: Specifications for the placement of directional signs, stop signs, and other important markers.
Striping Patterns: Diagrams illustrating the layout of lane markings, crosswalks, and parking spaces.
Visibility Considerations: Guidelines for ensuring that signage is visible and legible to drivers and pedestrians.

This plan contributes to a well-organized and safe environment for all users of the site.

Signage & striping details

Signage & Striping Details provide additional specifications and notes related to the signage and striping plan. These details ensure that contractors understand the requirements for installing signage and road markings accurately.

Important aspects include:

Material Specifications: Guidelines for the types of materials to be used for signs and striping paint.
Installation Techniques: Instructions for proper installation methods to ensure durability and visibility.

These details help maintain quality standards and ensure that signage and striping remain effective throughout the life of the project.

The benefits of a construction plan

A well-developed Construction Plan offers numerous benefits that contribute to the successful execution of a project. Below are some of the key advantages of having a comprehensive Construction Plan in place.

Improve management efficiency

One of the primary benefits of a Construction Plan is improved management efficiency. By providing a clear roadmap for the project, stakeholders can coordinate their efforts more effectively.

Key factors contributing to improved management efficiency include:

Clear Communication: A Construction Plan serves as a common reference point for all team members, facilitating better communication and collaboration.
Task Prioritization: With a detailed plan in place, project managers can prioritize tasks and allocate resources accordingly, ensuring that critical activities are completed on time.
Progress Tracking: The Construction Plan allows for regular monitoring of progress against established milestones, enabling timely adjustments to keep the project on track.

By enhancing management efficiency, a Construction Plan helps ensure that projects are completed smoothly and successfully.

Reduce risk of delay and cost overruns

Another significant advantage of a Construction Plan is its ability to reduce the risk of delays and cost overruns. By anticipating potential challenges and outlining strategies to address them, project teams can minimize disruptions.

Key factors contributing to reduced risk include:

Thorough Planning: A comprehensive Construction Plan identifies potential risks and challenges upfront, allowing teams to develop contingency plans.
Budget Management: The plan includes detailed cost estimates, helping project managers monitor expenses and avoid budget overruns.
Timeline Management: By establishing clear timelines and milestones, the Construction Plan helps keep the project on schedule and prevents unnecessary delays.

Ultimately, a well-structured Construction Plan enhances the likelihood of completing the project on time and within budget.

Ensure project quality and safety

A Construction Plan plays a crucial role in ensuring the quality and safety of the project. By outlining standards and procedures, the plan helps maintain high-quality workmanship and minimizes safety risks.

Key factors contributing to quality and safety include:

Quality Control Measures: The Construction Plan includes guidelines for quality control, ensuring that materials and workmanship meet established standards.
Safety Protocols: The plan outlines safety measures and protocols to protect workers and the public during construction activities.
Regular Inspections: The Construction Plan facilitates regular inspections and assessments to identify and address any quality or safety concerns promptly.

By prioritizing quality and safety, a Construction Plan helps deliver a successful project that meets stakeholder expectations.

What to Use to Make the Construction Plan?

Developing a Construction Plan involves utilizing various tools and methodologies to ensure accuracy and efficiency. Below are some of the key resources used in creating a Construction Plan.

Design Software

Design software plays a crucial role in developing the visual components of the Construction Plan. These tools enable professionals to create detailed drawings and models that represent the project accurately.

Key features of design software include:

3D Modeling: The ability to create three-dimensional representations of buildings and site features, allowing for better visualization.
Collaboration Tools: Features that facilitate collaboration among team members, enabling real-time updates and feedback.

Popular design software used in construction planning includes AutoCAD, Infrawork and Civil 3D.

Time Planning

Effective time planning is essential for developing a Construction Plan that meets project deadlines. This involves creating a detailed schedule that outlines the timeline for each phase of the project.

Key components of time planning include:

Gantt Charts: Visual representations of the project timeline, showing task durations and dependencies.
Milestone Tracking: Identifying key milestones and deadlines to monitor progress throughout the project.
Resource Allocation: Planning for the allocation of resources, including labor and materials, to ensure timely completion.

By employing effective time planning techniques, project managers can keep the project on track and avoid delays.
